PC16 SH 10IP061AI 1M0 | Piher
Carbon potentiometer with rotary switch, 1 MΩ, 0.2 W, linear, solder pin, PC16 SH 10IP061AI 1M0
Unit Price (€ / pc.)
6.5807 € *
Available: 338 pcs.
Total Price:
6.58 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5807 €
10 pcs.
4.7005 €
25 pcs.
4.0222 €
50 pcs.
3.4986 €
100 pcs.
3.1773 €
*incl. VAT plus shipping costs
Subject to prior sale
Panel mount potentiometer, PC16 SH 10IP061AI 1M0, Piher
ThePC16 SH 10IP061AI 1M0 is a single-turn panel control potentiometer using a carbon resistive element with plastic housing and incorporated shaft.
Applications
- Thermostat adjustment
- HVAC control
- Consumer electronics
- Industrial controls
- Automotive control
- Home and building automation

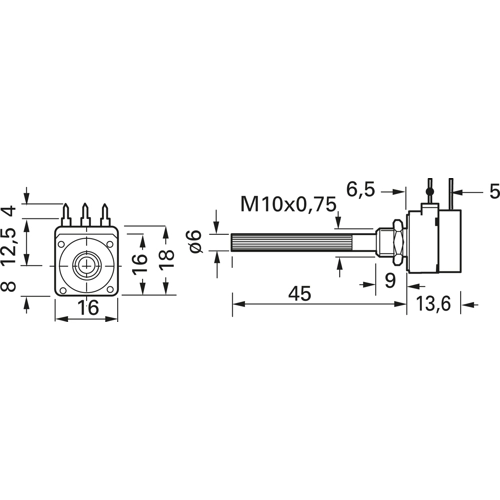

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 1 MΩ | |
| max. operating temperature | 70 °C | |
| Length | 16 mm | |
| min. operating temperature | -25 °C | |
| Assembly | angled | |
| axle diameter | 6 mm | |
| Width | 13.6 mm | |
| Track Taper | linear | |
| Rotary range, electrical | 280 ° | |
| Power | 0.2 W | |
| Connection | solder pin | |
| Mechanic rotary range | 300 ° | |
| Version | carbon potentiometer with rotary switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Original Packaging | Ammopack with 50 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
