PC16 SH 10IP061AI 1K0 | Piher

Carbon potentiometer with rotary switch, 1 kΩ, 0.2 W, linear, solder pin, PC16 SH 10IP061AI 1K0

Order No.: 68E366
EAN: 4099879971104
MPN:
PC16 SH 10IP061AI 1K0
Series: PC16 SH
PC16 SH 10IP061AI 1K0 Piher Potentiometers Image 1
PC16 SH 10IP061AI 1K0 Piher Potentiometers Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
4.2245 € *
Available: 3 pcs.
Total Price:
4.22 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2245 €
10 pcs.
3.7128 €
100 pcs.
3.2606 €
200 pcs.
3.1297 €
1000 pcs.
2.8679 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel mount potentiometer, PC16 SH 10IP061AI 1K0, Piher

ThePC16 SH 10IP061AI 1K0 is a single-turn panel control potentiometer using a carbon resistive element with plastic housing and incorporated shaft.

Applications

  • Thermostat adjustment
  • HVAC control
  • Consumer electronics
  • Industrial controls
  • Automotive control
  • Home and building automation

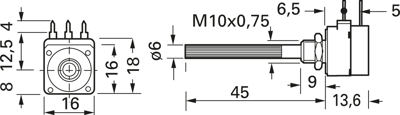

Technical specifications
Filter Property Value
Power 0.2 W
max. operating temperature 70 °C
ohmic resistance 1 kΩ
Track Taper linear
Width 13.6 mm
min. operating temperature -25 °C
Version carbon potentiometer with rotary switch
Connection solder pin
Mechanic rotary range 300 °
Length 16 mm
axle diameter 6 mm
Rotary range, electrical 280 °
Assembly angled
Logistics
Property Value
Country of origin CN
Customs tariff number 85334010
Original Packaging Ammopack with 50 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
