MS-332-6-4-0500 | PIC GmbH
Reed switche, ABS, 1 Form A (N/O), 5 W, 200 V (DC), 0.25 A, MS-332-6-4-0500
Order No.: 30G4712
EAN: 4099889448900
MPN:
MS-332-6-4-0500
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 14 Weeks

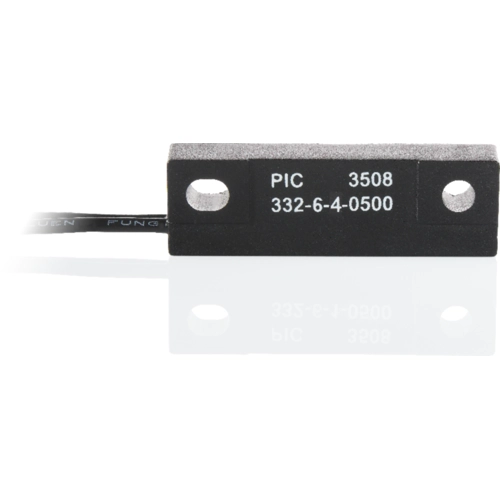

Reed sensor, MS-332-6-4-0500, PIC GmbH
The MS-332-6-4-0500 is a standard power reed sensor with an adjustable switching point and different magnetic sensitivity ranges.
Applications
- Position control
- Non touch switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 200 V | |
| Length | 32 mm | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.25 A | |
| Breaking capacity | 5 W | |
| Switching Voltage (AC) | 250 V | |
| Connection | cable connection | |
| Product type | reed sensor | |
| Contact resistance | 200 mΩ | |
| Version | ABS |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
