MS-328-7-2-0500 | PIC GmbH

Reed switche, magnet, 1 Form B (N/C), 10 W, 175 V (DC), 1 A, MS-328-7-2-0500

Order No.: 30G4709
EAN: 4099889448870
MPN:
MS-328-7-2-0500

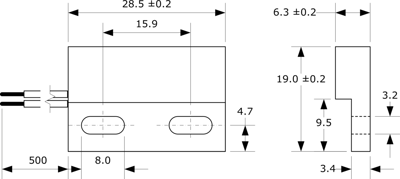

MS-328-7-2-0500 PIC GmbH Proximity Switches, Reed switches Image 1

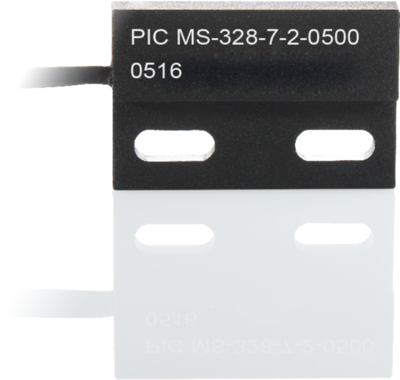

MS-328-7-2-0500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.8917 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,445.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.8917 €

Reed sensor, MS-328-7-2-0500, PIC GmbH

The MS-328-7-2-0500 is a normally closed standard flatpack (Form B) with an adjustable switching point and different magnetic sensitivity ranges.

Applications

  • Position control
  • Non touch switching
Technical specifications
Filter Property Value
Switching Voltage (AC) 120 V
Contact resistance 200 mΩ
Breaking capacity 10 W
switching current 1 A
Length 28.5 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 175 V
Connection cable connection
Latching switching function 1 Form B (N/C)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
