MS-328-5-3-0500 | PIC GmbH

Reed switche, magnet, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-328-5-3-0500

Order No.: 30G4707
EAN: 4099889448856
MPN:
MS-328-5-3-0500

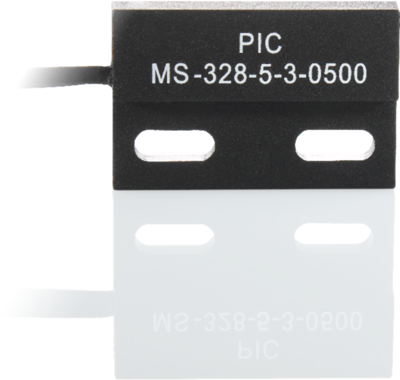

MS-328-5-3-0500 PIC GmbH Proximity Switches, Reed switches Image 1

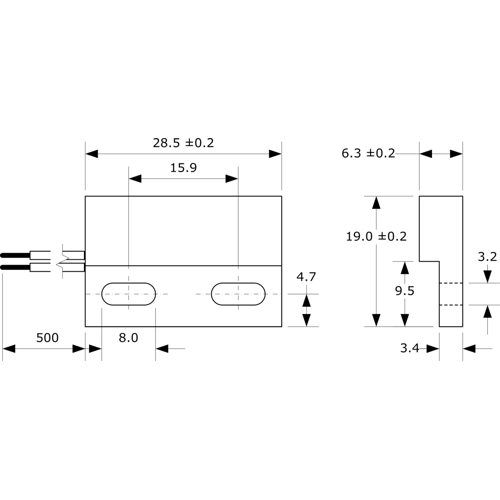

MS-328-5-3-0500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,219.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
2.4395 €

Reed sensor, MS-328-5-3-0500, PIC GmbH

The MS-328-5-3-0500 is a standard mains voltage reed sensor with an adjustable switching point and different magnetic sensitivity ranges.

Features

  • Mains voltage capability
  • Compact size

Applications

  • Position control
  • Non touch switching
Technical specifications
Filter Property Value
Switching Voltage (AC) 260 V
Contact resistance 150 mΩ
Breaking capacity 10 W
switching current 1 A
Length 28.5 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 200 V
Connection cable connection
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
