MS-324-5-3-0500 | PIC GmbH
Reed switche, ABS, 1 Form A (N/O), 5 W, 200 V (DC), 0.25 A, MS-324-5-3-0500
Order No.: 30G4703
EAN: 4099889448818
MPN:
MS-324-5-3-0500
Unit Price (€ / pc.)
2.4038 € *
Standard delivery time from the manufacturer is: On Request

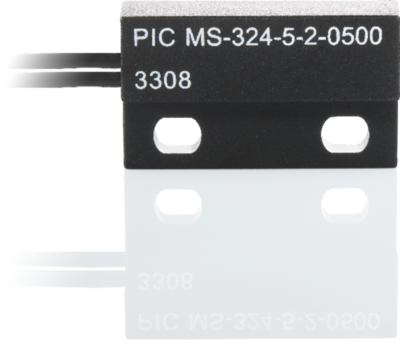

Reed sensor, MS-324-5-3-0500, PIC GmbH
The MS-324-5-3-0500 is a miniature mains voltage reed sensor with an adjustable switching point and different magnetic sensitivity ranges.
Features
- Mains voltage capability
- Compact size
Applications
- Position control
- Non touch switching
Technical specifications
| Switching Voltage (AC) | 260 V | |
| Contact resistance | 200 mΩ | |
| Breaking capacity | 5 W | |
| switching current | 0.25 A | |
| Length | 23 mm | |
| Product type | reed sensor | |
| Version | ABS | |
| Switching Voltage (DC) | 200 V | |
| Connection | cable connection | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
