Reed switche, built-in mounting M8, 1 Form A (N/O), 50 W, 200 V (DC), 0.7 A, MS-228M-6-3-0500

Order No.: 30G4721
EAN: 4099889448993
MPN:
MS-228M-6-3-0500

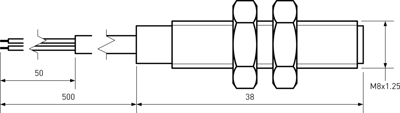

MS-228M-6-3-0500 PIC GmbH Proximity Switches, Reed switches Image 1

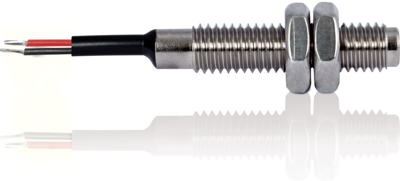

MS-228M-6-3-0500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
5.5335 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,383.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 pcs.
5.5335 €

Reed sensor, MS-228M-6-3-0500, PIC GmbH

The MS-228M-6-3-0500 is a power reed sensor that features a durable metal casing with an M8 thread, an adjustable switching point, and different magnetic sensitivity ranges.

Features

  • Mechanical protected switch

Applications

  • Position control
  • Non touch switching
Technical specifications
Switching Voltage (AC) 250 V
Contact resistance 300 mΩ
Breaking capacity 50 W
Assembly built-in mounting M8
diameter 8 mm
switching current 0.7 A
Length 38 mm
Product type reed sensor
Switching Voltage (DC) 200 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
