MS-228-6-3-0500 | PIC GmbH
Reed switche, built-in mounting M8, 1 Form A (N/O), 50 W, 200 V (DC), 1.5 A, MS-228-6-3-0500
Order No.: 30G4718
EAN: 4099889448962
MPN:
MS-228-6-3-0500
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
250 pcs.
3.5700 €
*incl. VAT plus shipping costs
Subject to prior sale

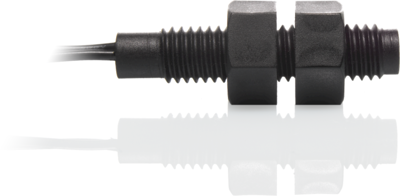

Reedsensor, MS-228-6-3-0500, PIC GmbH

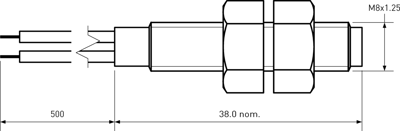

Reedsensor with a diameter of 7.7 mm, length 38 mm, switching current 1.5 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 250 V | |
| Contact resistance | 200 mΩ | |
| Breaking capacity | 50 W | |
| Assembly | built-in mounting M8 | |
| diameter | 7.7 mm | |
| switching current | 1.5 A | |
| Length | 38 mm | |
| Product type | reed sensor | |
| Switching Voltage (DC) | 200 V | |
| Connection | stranded wires | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
