Reed switche, magnet, built-in mounting M12, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-2212M-3-1-0500
Order No.: 30G4724
EAN: 4099889449020
MPN:
MS-2212M-3-1-0500
Unit Price (€ / pc.)
8.3419 € *
Standard delivery time from the manufacturer is: 14 Weeks

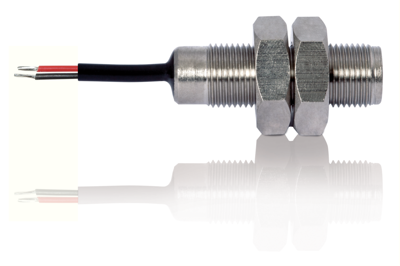

Reed sensor, MS-2212M-3-1-0500, PIC GmbH
The MS-2212M-3-1-0500 is a standard reed sensor that features a durable metal casing with an M12 thread, an adjustable switching point, and different magnetic sensitivity ranges.
Features
- Mechanical protected switch
Applications
- Position control
- Non touch switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 140 V | |
| Contact resistance | 300 mΩ | |
| Breaking capacity | 10 W | |
| Assembly | built-in mounting M12 | |
| diameter | 12 mm | |
| switching current | 1 A | |
| Length | 38 mm | |
| Product type | reed sensor | |
| Version | magnet | |
| Switching Voltage (DC) | 200 V | |
| Connection | stranded wires | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
