MS-2210M-3-1-0500 | PIC GmbH
Reed switche, brass, built-in mounting M10, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-2210M-3-1-0500
Order No.: 30G4722
EAN: 4099889449006
MPN:
MS-2210M-3-1-0500
Unit Price (€ / pc.)
6.5331 € *
Standard delivery time from the manufacturer is: 14 Weeks

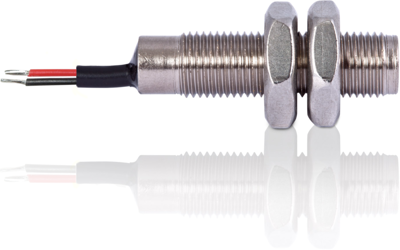

Reedsensor, MS-2210M-3-1-0500, PIC GmbH

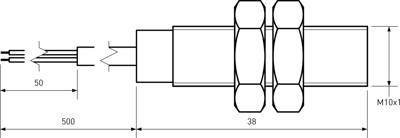

Reedsensor with a diameter of 10 mm, length 38 mm, switching current 1 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | brass | |
| switching current | 1 A | |
| Latching switching function | 1 Form A (N/O) | |
| Contact resistance | 300 mΩ | |
| diameter | 10 mm | |
| Switching Voltage (AC) | 140 V | |
| Breaking capacity | 10 W | |
| Length | 38 mm | |
| Switching Voltage (DC) | 200 V | |
| Connection | stranded wires | |
| Product type | reed sensor | |
| Assembly | built-in mounting M10 |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
