MS-216-5-3-0500 | PIC GmbH

Reed switche, ABS, 1 Form A (N/O), 10 W, 200 V (DC), 0.3 A, MS-216-5-3-0500

Order No.: 30G4767
EAN: 4099889449174
MPN:
MS-216-5-3-0500

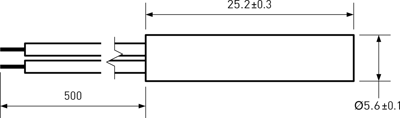

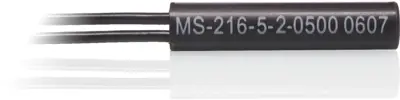

MS-216-5-3-0500 PIC GmbH Proximity Switches, Reed switches Image 1
MS-216-5-3-0500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
3.5938 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,796.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
3.5938 €

Reed sensor, MS-216-5-3-0500, PIC GmbH

Magnetic reed switch magnet SPST-NO wire leads cylinder

Technical specifications
Switching Voltage (AC) 260 V
Contact resistance 200 mΩ
Breaking capacity 10 W
diameter 5.6 mm
switching current 0.3 A
Length 25.2 mm
Product type reed sensor
Version ABS
Switching Voltage (DC) 200 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
