MS-215-3-1-0500 | PIC GmbH

Reed switche, ABS, 1 Form A (N/O), 10 W, 200 V (DC), 1 A, MS-215-3-1-0500

Order No.: 30G4761
EAN: 4099889449112
MPN:
MS-215-3-1-0500
MS-215-3-1-0500 PIC GmbH Proximity Switches, Reed switches Image 1
MS-215-3-1-0500 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.3205 € *
Available: 385 pcs.
Total Price:
2.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3205 €

Reed contact, MS-215-3-1-0500, PIC GmbH

Reed sensors in tube housing. Ideal as alarm contact in doors and windows, for model making and as position sensor.

Technical specifications
Filter Property Value
Switching Voltage (AC) 140 V
Contact resistance 200 mΩ
Breaking capacity 10 W

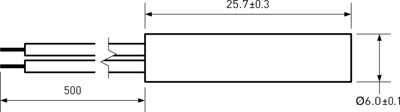

diameter 6 mm
switching current 1 A
Length 25.7 mm
Product type reed sensor
Version ABS
Switching Voltage (DC) 200 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Property Value
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
