MS-211-3-1-0300 | PIC GmbH

Reed switche, magnet, 1 Form A (N/O), 10 W, 150 V (DC), 0.5 A, MS-211-3-1-0300

Order No.: 30G4758
EAN: 4099889449082
MPN:
MS-211-3-1-0300

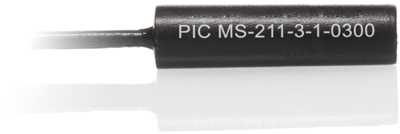

MS-211-3-1-0300 PIC GmbH Proximity Switches, Reed switches Image 1
MS-211-3-1-0300 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.7132 € *
Available: 423 pcs.
Leadtime: On Request **
Total Price:
2.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.7132 €

Reedsensor, MS-211-3-1-0300, PIC GmbH

Reedsensor with a diameter of 3.8 mm, length 12.7 mm, switching current 0.5 A

Technical specifications
Switching Voltage (AC) 120 V
Contact resistance 300 mΩ
Breaking capacity 10 W

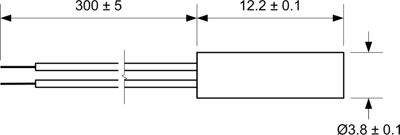

diameter 3.8 mm
switching current 0.5 A
Length 12.7 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 150 V
Connection cable connection
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
