MS-210-3-1-0300 | PIC GmbH
Reed switche, magnet, 1 Form A (N/O), 10 W, 150 V (DC), 0.5 A, MS-210-3-1-0300
Order No.: 30G4757
EAN: 4099889449075
MPN:
MS-210-3-1-0300
Unit Price (€ / pc.)
2.9631 € *
Standard delivery time from the manufacturer is: 14 Weeks

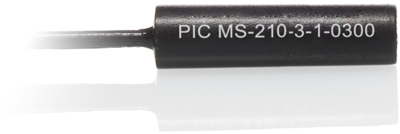

Reed sensor, MS-210-3-1-0300, PIC GmbH
The MS-210-3-1-0300 is a miniature reed sensor featuring a 20.32 mm pitch (Form A) designed for through-hole PCB assembly.
Features
- Mechanical protected switch
Applications
- Position control
- Non touch switching
Technical specifications
| Filter | Property | Value |
|---|---|---|

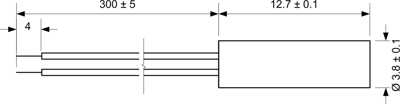

| diameter | 3.8 mm | |
| Switching Voltage (DC) | 150 V | |
| Length | 12.7 mm | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 120 V | |
| Connection | cable connection | |
| Product type | reed sensor | |
| Contact resistance | 300 mΩ | |
| Version | magnet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
