MS-208-3-1-0300 | PIC GmbH

Reed switche, magnet, 1 Form A (N/O), 5 W, 175 V (DC), 0.35 A, MS-208-3-1-0300

Order No.: 30G4755
EAN: 4099889449051
MPN:
MS-208-3-1-0300

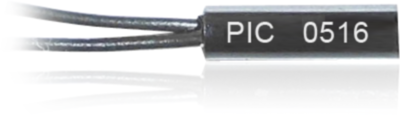

MS-208-3-1-0300 PIC GmbH Proximity Switches, Reed switches Image 1

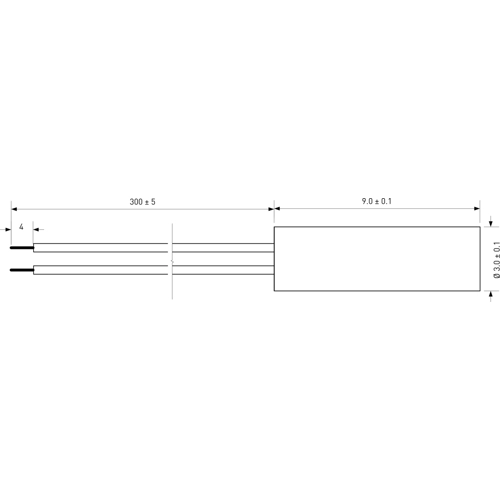

MS-208-3-1-0300 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
4.4982 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,249.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
4.4982 €

Reedsensor, MS-208-3-1-0300, PIC GmbH

Reedsensor with a diameter of 3 mm, length 9 mm, switching current 0.35 A

Technical specifications
Switching Voltage (AC) 140 V
Contact resistance 500 mΩ
Breaking capacity 5 W
diameter 3 mm
switching current 0.35 A
Length 9 mm
Product type reed sensor
Version magnet
Switching Voltage (DC) 175 V
Connection stranded wires
Latching switching function 1 Form A (N/O)
Logistics
Country of origin CN
Customs tariff number 85365080
MSL MSL 1
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
