MS-110X | PIC GmbH
Reed switche, PA, THT, 1 Form A (N/O), 5 W, 140 V (DC), 0.5 A, MS-110X
Order No.: 30G4781
EAN: 4099889449310
MPN:
MS-110X
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: 16 Weeks

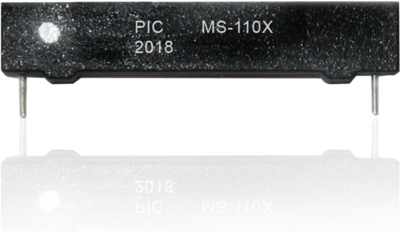

Reedsensor, MS-110X, PIC GmbH

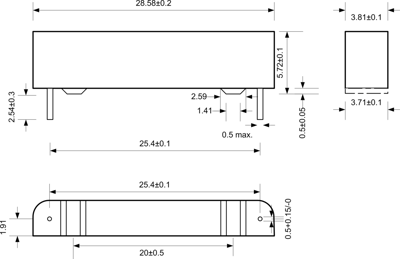

Reedsensor with a length of 28.5 mm, switching current 0.5 A, breaking capacity 5 W
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed sensor | |
| Version | PA | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 5 W | |
| Switching Voltage (DC) | 140 V | |
| Switching Voltage (AC) | 120 V | |
| switching current | 0.5 A | |
| Contact resistance | 150 mΩ | |
| Assembly | THT | |
| Connection | PCB pin | |
| Length | 28.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
| Original Packaging | Carton with 50 pieces |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
