MS-108-5-3 | PIC GmbH
Reed switche, THT, 1 Form A (N/O), 10 W, 200 V (DC), 0.3 A, MS-108-5-3
Order No.: 30G4780
EAN: 4099889449303
MPN:
MS-108-5-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.428 € *
Standard delivery time from the manufacturer is: 14 Weeks
Reed sensor, MS-108-5-3, PIC GmbH
The MS-108-5-3 is a mains voltage reed sensor with 20.32 mm pitch (Form A) designed for through-hole PCB assembly.
Features
- Mechanical protected switch
Applications
- Position control
- Non touch switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed sensor | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| Switching Voltage (AC) | 250 V | |
| switching current | 0.3 A | |
| Contact resistance | 100 mΩ | |
| Assembly | THT | |
| Connection | PCB pin | |

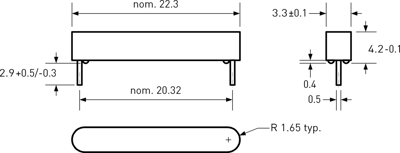

| Length | 22.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
