MS-108-4-2 | PIC GmbH

Reed switche, PA, THT, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-108-4-2

Order No.: 30G4779
EAN: 4099889449297
MPN:
MS-108-4-2

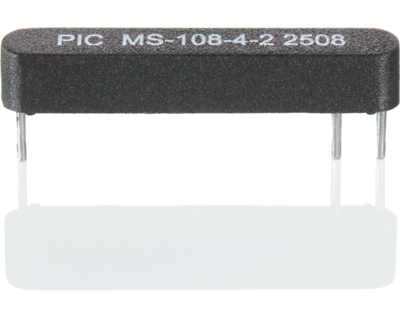

MS-108-4-2 PIC GmbH Proximity Switches, Reed switches Image 1
MS-108-4-2 PIC GmbH Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
2.3681 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.3681 €

Reedsensor, MS-108-4-2, PIC GmbH

Reedsensor with a length of 22.3 mm, switching current 0.25 A, breaking capacity 5 W

Technical specifications
Version PA
Length 22.3 mm
Breaking capacity 5 W
Contact resistance 100 mΩ
Switching Voltage (AC) 120 V
Product type reed sensor
switching current 0.25 A
Connection PCB pin
Switching Voltage (DC) 175 V
Latching switching function 1 Form C (NO/NC)
Assembly THT
Logistics
MSL MSL 1
Customs tariff number 85365080
Country of origin CN
Original Packaging Carton with 500 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
