MS-107-3-2 | PIC GmbH
Reed switche, PA, THT, 1 Form A (N/O), 10 W, 180 V (DC), 0.7 A, MS-107-3-2
Order No.: 30G4777
EAN: 4099889449273
MPN:
MS-107-3-2
Unit Price (€ / pc.)
1.2495 € *
Standard delivery time from the manufacturer is: 14 Weeks

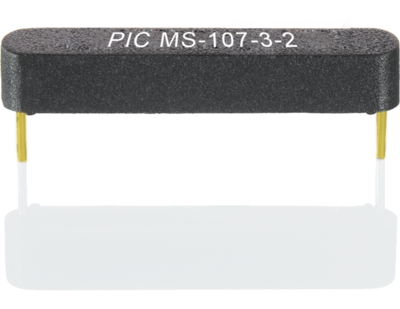

Reed sensor, MS-107-3-2, PIC GmbH

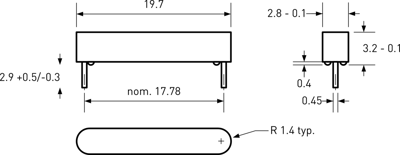

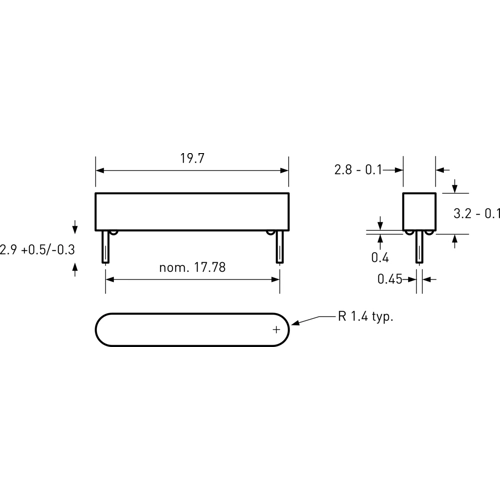

The MS-107-3-2 is a miniature reed sensor featuring a 17.78 mm pitch (Form A) designed for through-hole PCB assembly.
Features
- Mechanical protected switch
Applications
- Position control
- Non touch switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 180 V | |
| Length | 19.7 mm | |
| Assembly | THT | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.7 A | |
| Breaking capacity | 10 W | |
| Switching Voltage (AC) | 130 V | |
| Connection | PCB pin | |
| Product type | reed sensor | |
| Contact resistance | 150 mΩ | |
| Version | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| MSL | MSL 1 |
| Original Packaging | Carton with 500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
