MS-104-3-1 | PIC GmbH

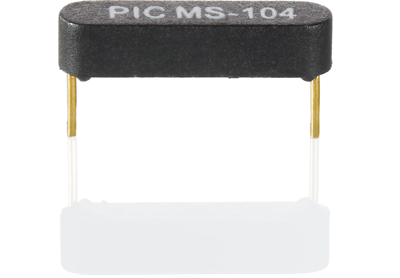

Name: Reed switche, PA, THT, 1 Form A (N/O), 10 W, 150 V (DC), 0.5 A, MS-104-3-1
Brand: PIC GmbH
SKU: 30G4774
Availability: InStock

Reed switche, PA, THT, 1 Form A (N/O), 10 W, 150 V (DC), 0.5 A, MS-104-3-1

Order No.: 30G4774

EAN: 4099889449242

MPN:

MS-104-3-1

Image may differ

Key Specification:

Product type reed sensor

Version PA

Latching switching function 1 Form A (N/O)

Breaking capacity 10 W

Switching Voltage (DC) 150 V

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

2.8322 € *

Available: 847 pcs.

Total Price:

2.83 € *

Price list

Quantity

Price per unit*

1 pcs.

2.8322 €

25 pcs.

2.4038 €

100 pcs.

2.2253 €

250 pcs.

2.1063 €

1500 pcs.

1.8445 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Reedsensor with a length of 11.4 mm, switching current 0.5 A, breaking capacity 10 W

Technical specifications

Filter	Property	Value
	Product type	reed sensor
	Version	PA
	Latching switching function	1 Form A (N/O)
	Breaking capacity	10 W
	Switching Voltage (DC)	150 V
	Switching Voltage (AC)	120 V
	switching current	0.5 A
	Contact resistance	200 mΩ
	Assembly	THT
	Connection	PCB pin

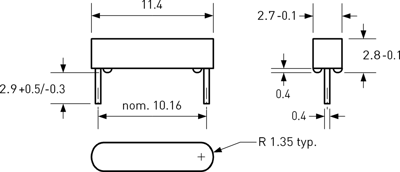

	Length	11.4 mm
