277774 | PEPPERL+FUCHS

Ultrasonic sensor, 200-4000 mm, 10-30 VDC, 277774

Order No.: 28G1056
EAN: 4099889457933
MPN:
277774
UC4000-L2-E6-V15
Series: UC4000

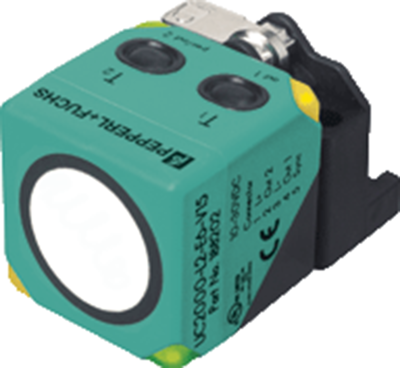

277774 PEPPERL+FUCHS Ultrasonic Sensors Image 1
277774 PEPPERL+FUCHS Ultrasonic Sensors Image 2
Image may differ
Unit Price (€ / pc.)
425.0442 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
425.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
425.0442 €

Ultrasonic sensors, type Pepperl+Fuchs UC4000.

Bidirectional and rotatable sensor head; Operating voltage: 10 to 30 VDC. Sensing range: 200 to 4000 mm. Response time: max. 180 ms. Connection: 5-pole appliance connector. Degree of protection: IP 67. Housing: PA-GF35. Operating temperatures: –25 to 70 °C. Certifications: cULus, cCSAus.

Technical attributes (type, output type): 188208, NO/NC

Technical specifications
Filter Property Value
Activation time 180 ms
Detection range 200-4000 mm
Voltage 10-30 VDC
Connection M12-connector
Degree of protection (IP) IP67
Product type ultrasonic sensor
Logistics
Property Value
Customs tariff number 85365019
Country of origin SG
Compliance
Property Value
Substance description lead, 4,4'-isopropylidenediphenol, Lead titanium zirconium oxide
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
