233249 | PEPPERL+FUCHS
Ultrasonic one-way barrier, PNP, 0-800 mm, 1 Form B (N/C), 20-30 VDC, 233249
Order No.: 28G7552
EAN: 4050143034246
MPN:
233249
UBE800-F77-SE3-V31
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
290.1577 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
290.16 € *
Price list
Quantity
Price per unit*
1 pcs.
290.1577 €
2 pcs.
283.0772 €
*incl. VAT plus shipping costs
Subject to prior sale

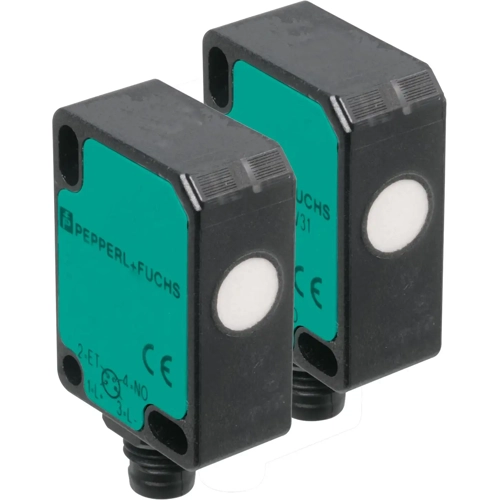

Through-beam ultrasonic barrier, UBE800-F77-SE3-V31, PEPPERL+FUCHS
Through-beam ultrasonic barrier, Miniature design.
Features
- Highly visible LEDs for Power ON and switching state
- High switching frequency
- Program input
- Degree of protection IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ultrasonic one-way barrier | |
| Version | PNP | |
| Detection range | 0-800 mm | |
| Latching switching function | 1 Form B (N/C) | |
| Voltage | 20-30 VDC | |
| Switching frequency | 100 Hz | |
| Connection | M8-connector | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
