233248 | PEPPERL+FUCHS
Ultrasonic one-way barrier, 0-800 mm, 1 Form A (N/O), 20-30 VDC, 233248
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
290.1577 € *
Standard delivery time from the manufacturer is: 1 Week

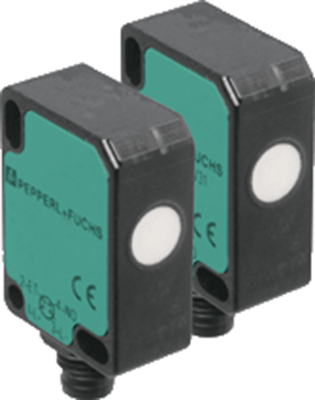

Thru-beam ultrasonic barriers, type Pepperl+Fuchs UBE800.
Clearly visible LEDs for power on and switching states; Operating voltage: 20 to 30 VDC. Sensing range: 0 to 800 mm emitter/transmitter spacing. Transducer frequency: approx. 300 kHz. Connection: 4-pole connector. Degree of protection: IP 67. Housing: PC. Operating temperatures: –25 to 70 °C. Certifications: UL, CSA.
Type: 233248, thru-beam ultrasonic barrier
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ultrasonic one-way barrier | |
| Detection range | 0-800 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Voltage | 20-30 VDC | |
| Activation time | 150 ms | |
| Switching frequency | 100 Hz | |
| Connection | M8-connector | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead titanium zirconium oxide | 4,4'-isopropylidenediphenol | Lead | Perfluorobutane sulfonic acid (PFBS) and its salts |
| Date of RoHS guidelines | 3/31/15 |
