211977 | PEPPERL+FUCHS
Ultrasonic one-way barrier, PNP, 100-300 mm, 1 Form A (N/O), 10-30 VDC, 211977
Order No.: 28G7556
EAN: 4050143026968
MPN:
211977
UBEC300-18GH40-SE2-V1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
538.1775 € *
Standard delivery time from the manufacturer is: 1 Week

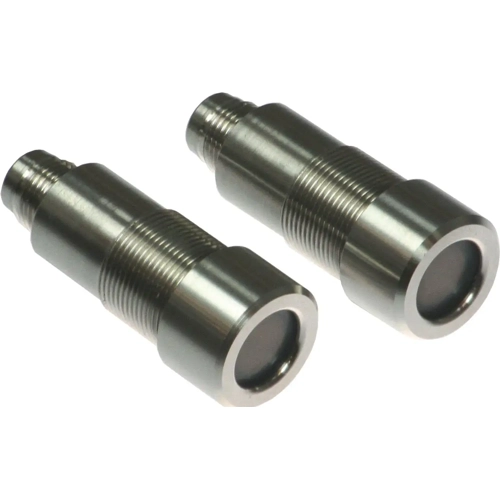

Through-beam ultrasonic barrier, UBEC300-18GH40-SE2-V1, PEPPERL+FUCHS

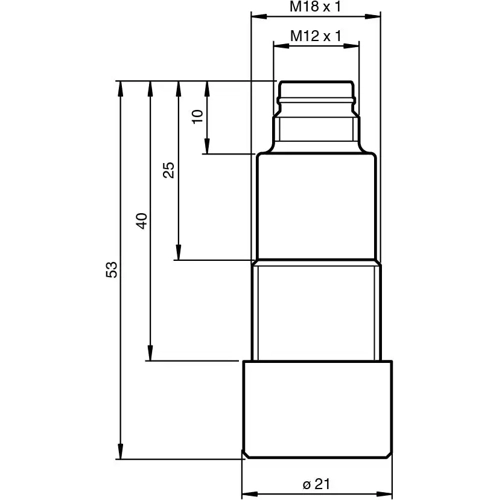

Short design, 40 mm, Stainless steel housing, Chemical-resistant.
Features
- Switching output
- Program input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | ultrasonic one-way barrier | |
| Version | PNP | |
| Detection range | 100-300 mm | |
| Latching switching function | 1 Form A (N/O) | |
| Voltage | 10-30 VDC | |
| Switching frequency | 100 Hz | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
