192999 | PEPPERL+FUCHS
Double curve sensor, PNP, 20-60 mm, 3 Form B (N/C), 18-30 VDC, 192999
Order No.: 28G6107
EAN: 4050143020355
MPN:
192999
UDC-18GM-400-3E3
Unit Price (€ / pc.)
855.7885 € *
Standard delivery time from the manufacturer is: 1 Week

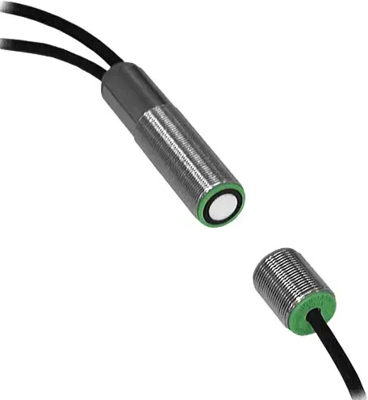

Double sheet sensor, UDC-18GM-400-3E3, PEPPERL+FUCHS
Double sheet sensor, Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, No teach-in required.
Features
- Function indicators visible from all directions
- Insensitive to printing, colors, and shining surfaces
- Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils
- Perpendicular or inclined sensor mounting relative to the sheet plane possible
- Programmable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | double curve sensor | |
| Version | PNP | |
| Detection range | 20-60 mm | |
| Latching switching function | 3 Form B (N/C) | |
| Voltage | 18-30 VDC | |
| switching current | 80 mA | |
| Connection | cable connection | |
| Installation diameter | 18 mm | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
