120342 | PEPPERL+FUCHS

Ultrasonic sensor, 30-400 mm, 10-30 VDC, 120342

Order No.: 28G1048
EAN: 4099889457858
MPN:
120342
UB400-12GM-I-V1
Series: UB400

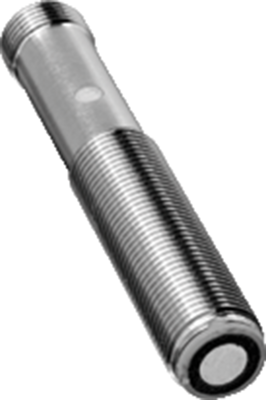

120342 PEPPERL+FUCHS Ultrasonic Sensors Image 1
120342 PEPPERL+FUCHS Ultrasonic Sensors Image 2
Image may differ
Unit Price (€ / pc.)
381.1451 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
381.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
381.1451 €

Ultrasonic sensors, type Pepperl+Fuchs UB400-12GM.

Very small blind zone, with temperature compensation; Operating voltage: 10 to 30 VDC. Sensing range: 30 to 400 mm. Response time: 50 ms. Connection: 4-pole appliance connector. Degree of protection: IP 67. Housing: nickel-plated brass. Operating temperatures: –25 to 70 °C. Certifications: cULus, cCSAus.

Technical attributes (type, output type): 120342, analog output

Technical specifications
Filter Property Value
Detection range 30-400 mm
Installation diameter 12 mm
Degree of protection (IP) IP67
Connection M12-connector
Voltage 10-30 VDC
Activation time 50 ms
Product type ultrasonic sensor
Logistics
Property Value
Country of origin DE
Customs tariff number 90151000
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
