114846 | PEPPERL+FUCHS

Ultrasonic sensor, 30-400 mm, 10-30 VDC, 114846

Order No.: 28G1049
EAN: 4099889457865
MPN:
114846
UB400-12GM-E5-V1
Series: UB400

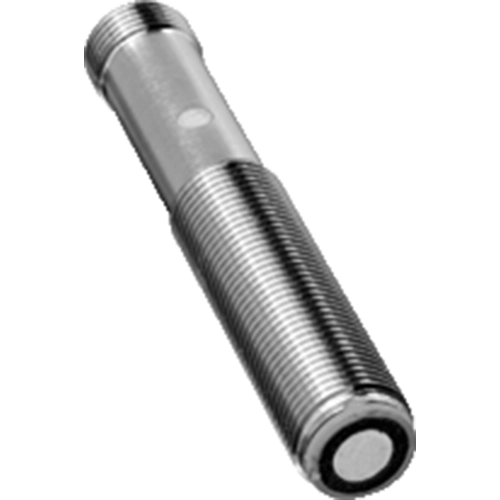

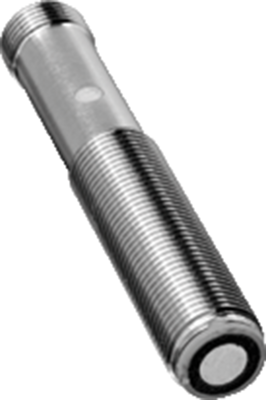

114846 PEPPERL+FUCHS Ultrasonic Sensors Image 1
114846 PEPPERL+FUCHS Ultrasonic Sensors Image 2
Image may differ
Unit Price (€ / pc.)
349.2412 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
349.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
349.2412 €

Ultrasonic sensors, type Pepperl+Fuchs UB400-12GM.

Very small blind zone, with temperature compensation; Operating voltage: 10 to 30 VDC. Sensing range: 30 to 400 mm. Response time: 50 ms. Connection: 4-pole appliance connector. Degree of protection: IP 67. Housing: nickel-plated brass. Operating temperatures: –25 to 70 °C. Certifications: cULus, cCSAus.

Technical attributes (type, output type): 114846, NO/NC

Technical specifications
Filter Property Value
Switching frequency 8 Hz
Activation time 50 ms
Detection range 30-400 mm
Voltage 10-30 VDC
Installation diameter 12 mm
Connection M12-connector
Degree of protection (IP) IP67
Product type ultrasonic sensor
Logistics
Property Value
Customs tariff number 85365019
Country of origin SG
Compliance
Property Value
Substance description lead, 4,4'-isopropylidenediphenol, Lead titanium zirconium oxide
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
