255621 | PEPPERL+FUCHS
Transmitter power supply, 255621
Order No.: 28G8549
EAN: 4050143064281
MPN:
255621
KFD2-CRG2-1.D
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
413.1442 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
413.14 € *
Price list
Quantity
Price per unit*
1 pcs.
413.1442 €
2 pcs.
403.4219 €
*incl. VAT plus shipping costs
Subject to prior sale

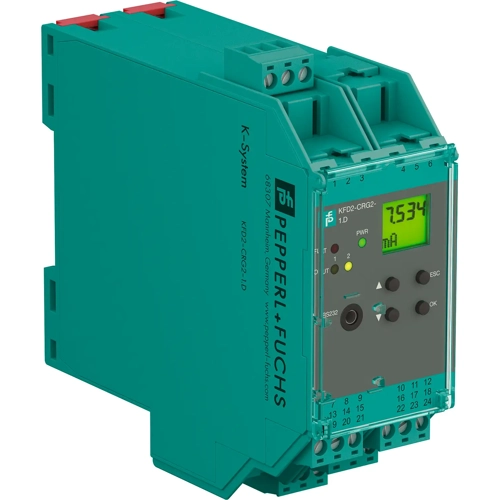

Transmitter Power Supply, KFD2-CRG2-1.D, PEPPERL+FUCHS

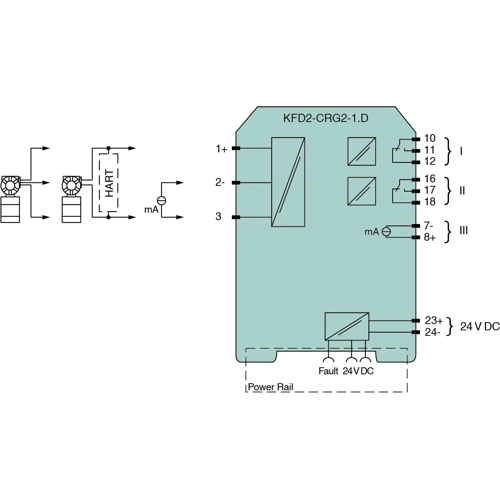

1-channel signal conditioner, 24 V DC supply (Power Rail), Input 2-wire and 3-wire transmitters and 2-wire current sources.
Features
- 2 relay contact outputs
- Adjustable energized/de-energized delay
- Programmable high/low alarm
- Linearization function (max 20 points)
- Line fault detection (LFD)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | transmitter power supply | |
| Version | 1 channel signal isolator | |
| measurement range | 20-30 VDC | |
| Signal output | 1 x analog | |
| Length | 115 mm | |
| Width | 40 mm | |
| Height | 119 mm | |
| Weight | 300 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85437090 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
