263224 | PEPPERL+FUCHS
Passive distributor, AS-Interface, 263224
Order No.: 28G8103
EAN: 4050143155651
MPN:
263224
VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
64.3195 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
64.32 € *
Price list
Quantity
Price per unit*
1 pcs.
64.3195 €
2 pcs.
61.7491 €
3 pcs.
59.3691 €
*incl. VAT plus shipping costs
Subject to prior sale

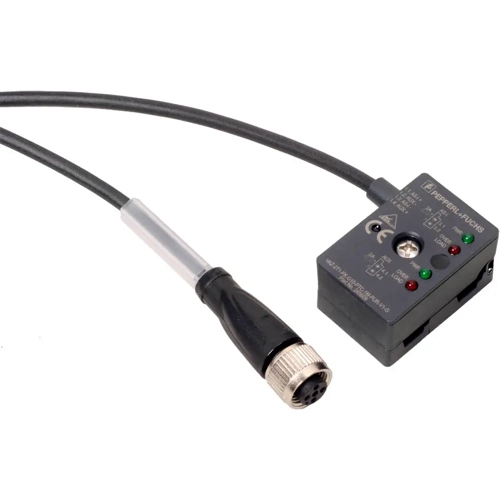

AS-Interface splitter box, VAZ-2T1-FK-G10-PTC-2M-PUR-V1-G, PEPPERL+FUCHS
G10 junction block, LED status indication, AS-Interface, and auxiliary power to 1x M12 round plug connector.
Features
- One piece housing
- Simple and fast mounting
- Electronic current limitation with LED display
- Gold-plated and machined contacts
- Oil and abrasion resistant PUR line appropriate for drag chains
- Immunity to vibration
- Degree of protection IP68 / IP69K
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power Input | M12 | |
| Protocol | AS-Interface | |
| Cable length | 2 m | |
| Degree of protection (IP) | IP67/IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
