134144 | PEPPERL+FUCHS
Interface sensor/actuator module, AS-Interface, 6 x M12 (4 input / 2 output), 134144
Order No.: 28G6391
EAN: 4050143015245
MPN:
134144
VBA-4E2A-G2-XE/E2
Unit Price (€ / pc.)
263.3470 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
263.35 € *
Price list
Quantity
Price per unit*
1 pcs.
263.3470 €
2 pcs.
256.9210 €
*incl. VAT plus shipping costs
Subject to prior sale

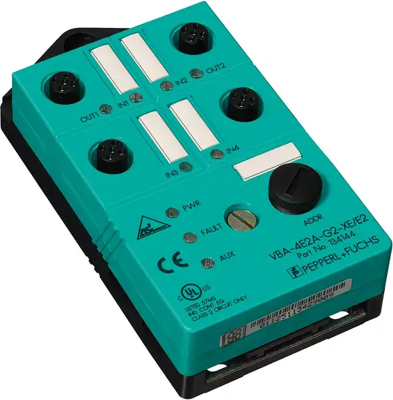

AS-Interface sensor/actuator module, VBA-4E2A-G2-XE/E2, PEPPERL+FUCHS
G2 flat module, 4 inputs and 2 electronic outputs, AS-Interface certificate, Degree of protection IP67.
Features
- A/B node with extended addressing possibility for up to 62 nodes
- Addressing jack
- Communication monitoring
- Inputs for 3-wire sensors (PNP) and mechanical contacts
- Power supply of the inputs and outputs from the external auxiliary voltage
- Ground connection (FE) possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Signal type | PNP | |
| IO Ports | 6 x M12 (4 input / 2 output) | |
| Bus Output | 2 x M12 | |
| Protocol | AS-Interface | |
| Degree of protection (IP) | IP67 | |
| Bus Input | 4 x M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
