NXN8-12GM50-E2 | PEPPERL+FUCHS
Inductive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 30 V (DC), 100 mA, NXN8-12GM50-E2
Unit Price (€ / pc.)
57.5722 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
57.57 € *
Price list
Quantity
Price per unit*
1 pcs.
57.5722 €
5 pcs.
54.1212 €
15 pcs.
52.0387 €
50 pcs.
49.7420 €
150 pcs.
47.6714 €
*incl. VAT plus shipping costs
Subject to prior sale

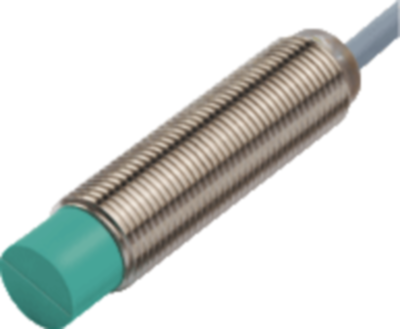

Inductive sensor, NXN8-12GM50-E2, PEPPERL+FUCHS
The inductive sensor features a 8 mm non-flush design, allowing for flexible application and a variety of mounting options.

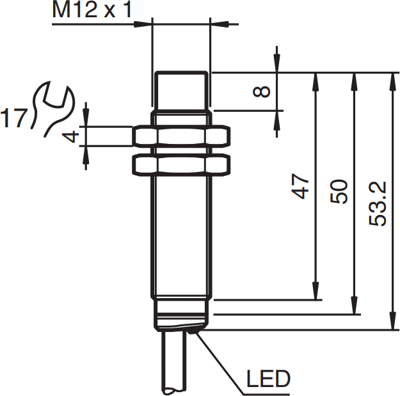

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 12 mm | |
| Switching Voltage (DC) | 30 V | |
| Connection | cable, PVC 3 x 0.34 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 100 mA | |
| Length | 53.2 mm | |
| Product type | inductive sensor | |
| Detecting distance | 8 mm | |
| Assembly | flush mounting M12, not flush | |
| Degree of protection (IP) | IP67 | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
