NXN3-8GM30--E2 | PEPPERL+FUCHS

Inductive sensor, PNP, flush mounting M8, not flush, 1 Form A (N/O), 100 mA, NXN3-8GM30--E2

Order No.: 28G1093
EAN: 4099889447378
MPN:
NXN3-8GM30--E2
Series: NXN

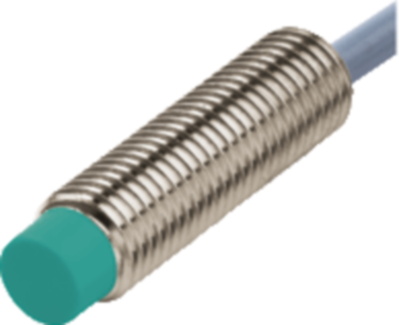

NXN3-8GM30--E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1

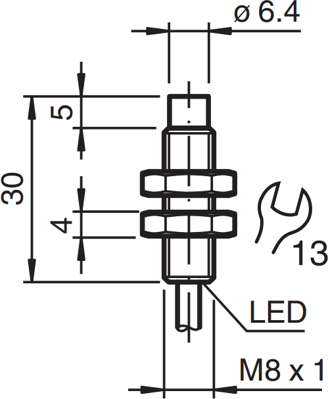

NXN3-8GM30--E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
58.905 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
58.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
58.905 €

Inductive sensor, NXN3-8GM30--E2, PEPPERL+FUCHS

Inductive sensor, 3 mm recessed.

Technical specifications
Detecting distance 3 mm
Degree of protection (IP) IP67
Assembly flush mounting M8, not flush
diameter 8 mm
switching current 100 mA
Length 30 mm
Product type inductive sensor
Version PNP
Connection cable, PVC 3 x 0.14 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin VN
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
