NXN12-18GM50-E2 | PEPPERL+FUCHS

Inductive sensor, PNP, flush mounting M18, not flush, 1 Form A (N/O), 100 mA, NXN12-18GM50-E2

Order No.: 28G1088
EAN: 4099889447323
MPN:
NXN12-18GM50-E2
Series: NXN

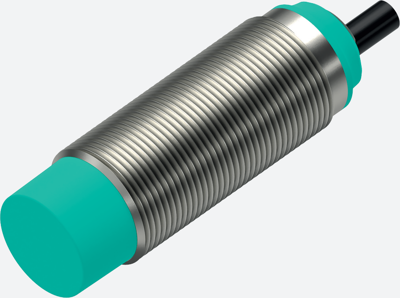

NXN12-18GM50-E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1
NXN12-18GM50-E2 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
61.5111 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
61.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
61.5111 €

Inductive sensor, NXN12-18GM50-E2, PEPPERL+FUCHS

The inductive sensor features a 12 mm non-flush design, allowing for flexible application and a variety of mounting options.

Technical specifications
Detecting distance 12 mm
Degree of protection (IP) IP67

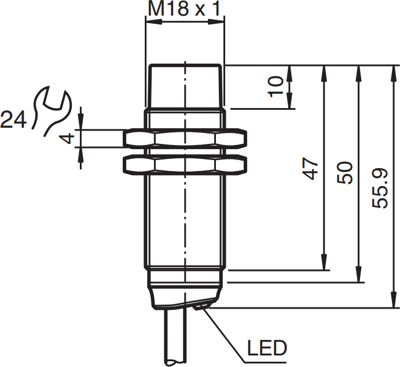

Assembly flush mounting M18, not flush
diameter 18 mm
switching current 100 mA
Length 55.9 mm
Product type inductive sensor
Version PNP
Connection cable, PVC 3 x 0.34 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin VN
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
