NXB15-30GM50-E2 | PEPPERL+FUCHS
Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 100 mA, NXB15-30GM50-E2
Unit Price (€ / pc.)
54.3949 € *
Standard delivery time from the manufacturer is: 3 Weeks
Inductive sensor, NXB15-30GM50-E2, PEPPERL+FUCHS
The inductive sensor features a 15 mm flush design, allowing for flexible application and a variety of mounting options.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | PNP | |
| switching current | 100 mA | |
| Latching switching function | 1 Form A (N/O) | |
| diameter | 30 mm | |
| Degree of protection (IP) | IP67 | |
| Detecting distance | 15 mm | |
| Length | 60.3 mm | |
| Connection | cable, PVC 3x0.34 mm², 2 m | |
| Product type | inductive sensor | |

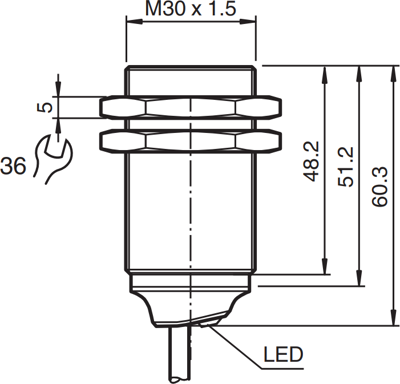

| Assembly | flush mounting M30, flush |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
