87749 | PEPPERL+FUCHS

Inductive sensor, PNP, flush mounting M30, flush, 1 Form A (N/O), 15 mA, 87749

Order No.: 28G1014
EAN: 4099889447125
MPN:
87749
NBB15-30GM30-E2
Series: NBB

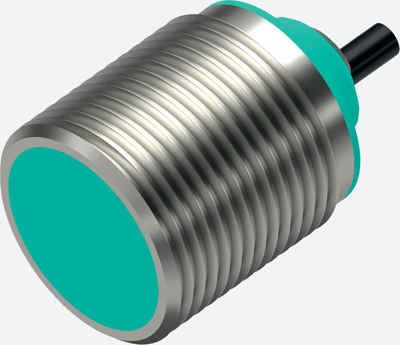

87749 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1

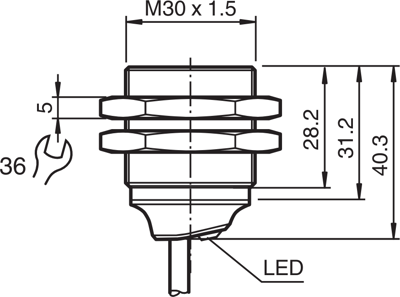

87749 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
166.243 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
166.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
166.243 €

Inductive sensor, 87749, PEPPERL+FUCHS

The inductive sensor features an 15 mm flush design and offers an extended operating distance.

Technical specifications
Detecting distance 15 mm
Degree of protection (IP) IP67
Assembly flush mounting M30, flush
diameter 30 mm
switching current 15 mA
Length 40.3 mm
Product type inductive sensor
Version PNP
Connection cable, PVC 0.34 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin ID
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
Substance description lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride
SVHC free No
RoHS conform Yes
