87745 | PEPPERL+FUCHS

Inductive sensor, PNP, flush mounting M18, flush, 1 Form A (N/O), 15 mA, 87745

Order No.: 28G1010
EAN: 4099889447088
MPN:
87745
NBB8-18GM30-E2
Series: NBB

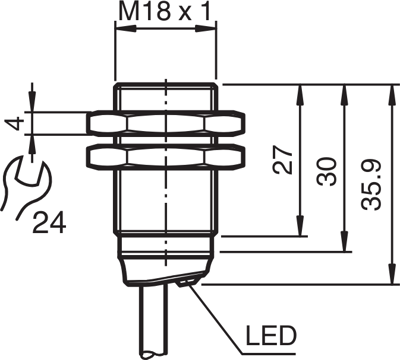

87745 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1

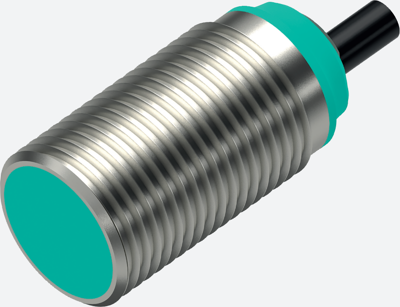

87745 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
95.4975 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
95.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
95.4975 €

Inductive sensor, 87745, PEPPERL+FUCHS

The inductive sensor features an 8 mm flush design and offers an extended operating distance.

Technical specifications
Detecting distance 8 mm
Degree of protection (IP) IP67
Assembly flush mounting M18, flush
diameter 18 mm
switching current 15 mA
Length 35.9 mm
Product type inductive sensor
Version PNP
Connection cable, PVC 0.34 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin ID
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
Substance description lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride
SVHC free No
RoHS conform Yes
