87741 | PEPPERL+FUCHS

Inductive sensor, PNP, flush mounting M12, flush, 1 Form A (N/O), 15 mA, 87741

Order No.: 28G1005
EAN: 4099889447040
MPN:
87741
NBB4-12GM30-E2
Series: NBB

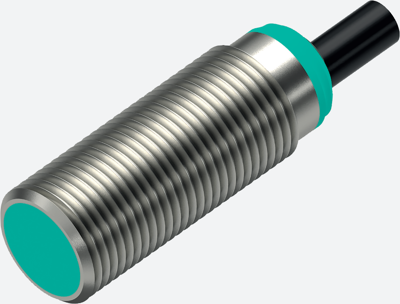

87741 PEPPERL+FUCHS Proximity Switches, Reed switches Image 1
87741 PEPPERL+FUCHS Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
124.6644 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
124.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
124.6644 €

Inductive sensor, 87741, PEPPERL+FUCHS

The inductive sensor features a 4 mm flush design and offers an extended operating distance.

Technical specifications
Detecting distance 4 mm
Degree of protection (IP) IP67
Assembly flush mounting M12, flush
diameter 12 mm
switching current 15 mA
Length 33.2 mm
Product type inductive sensor
Version PNP
Connection cable, PVC 14 mm², 2 m
Latching switching function 1 Form A (N/O)
Logistics
Country of origin ID
Customs tariff number 85365019
Compliance
Date of RoHS guidelines 3/31/15
Substance description lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride
SVHC free No
RoHS conform Yes
