800001 | PEPPERL+FUCHS
Proximity switch, Surface mounting, 1 Form A (N/O), 15 mA, Detection range 1.5 mm, 800001
Unit Price (€ / pc.)
94.4622 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

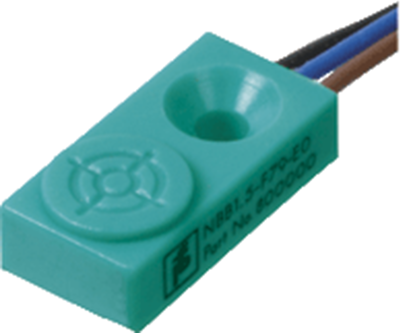

Inductive sensors, type Pepperl+Fuchs NBB1,5.
Sensing range: 1.5 mm. Output function: NO. Mounting mode: 1.5 mm, flush. Switching output: PNP. Rated voltage: 5.0 to 30 VDC. Connection: 500 mm PVC stranded wire. Voltage drop: max. 1.5 VDC. Open circuit current: max. 15 mA. Switching frequency: max. 1200 Hz. Housing: PA. Degree of protection: IP 67. Ambient temperatures: –25 to +70 °C. Certifications: UL, CSA.
Type: 800001, inductive sensor
Technical specifications
| Connection | stranded wires | |
| Version | Inductive sensor | |
| Detection range | 1.5 mm | |

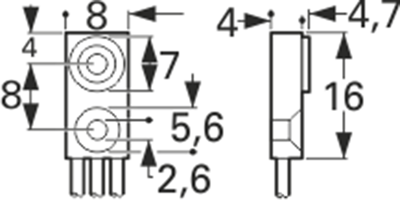

| Length | 16 mm | |
| Assembly | Surface mounting | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 15 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 4,4'-isopropylidenediphenol |
