293454-0044 | PEPPERL+FUCHS
Inductive sensor, NPN, flush mounting, not flush, 1 Form A (N/O), 10 mA, 293454-0044
Order No.: 28G1236
EAN: 4050143222308
MPN:
293454-0044
NBN12-18GM50-E0-M1
Unit Price (€ / pc.)
101.9116 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
101.91 € *
Price list
Quantity
Price per unit*
1 pcs.
101.9116 €
2 pcs.
99.3055 €
3 pcs.
96.8184 €
*incl. VAT plus shipping costs
Subject to prior sale

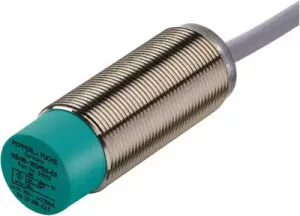

Inductive sensor, NBN12-18GM50-E0-M1, PEPPERL+FUCHS
Inductive sensor, 12 mm non-flush, Increased operating distance.
Features
- Extended temperature range -40 ... +85 °C
- With increased sealing, protection class IP68 / IP69K
- E1-Type approval
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable, PUR 0.34 mm², 2 m | |
| Degree of protection (IP) | IP68/IP69K | |
| Latching switching function | 1 Form A (N/O) | |
| diameter | 18 mm | |
| switching current | 10 mA | |
| Assembly | flush mounting, not flush | |
| Detecting distance | 12 mm | |
| Version | NPN | |
| Product type | inductive sensor | |
| Length | 50 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
