210625 | PEPPERL+FUCHS
Capacitive sensor, PNP, flush mounting M12, not flush, 1 Form A (N/O), 12 mA, 210625
Order No.: 28G1030
EAN: 4099889447224
MPN:
210625
CBN8-12GH60-E2-V1
Unit Price (€ / pc.)
143.7996 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
143.80 € *
Price list
Quantity
Price per unit*
1 pcs.
143.7996 €
2 pcs.
140.1106 €
3 pcs.
136.6120 €
*incl. VAT plus shipping costs
Subject to prior sale

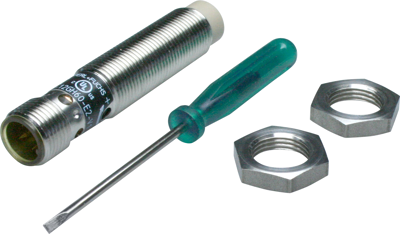

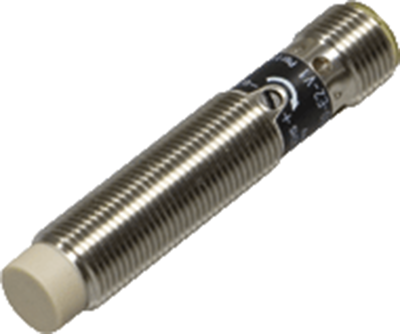

Capacitive sensor, 210625, PEPPERL+FUCHS
The capacitive sensor features an 8 mm non-flush design, with an adjustable operating distance controlled by a potentiometer. It is resistant to aggressive substances and is suitable for use in food-related environments.

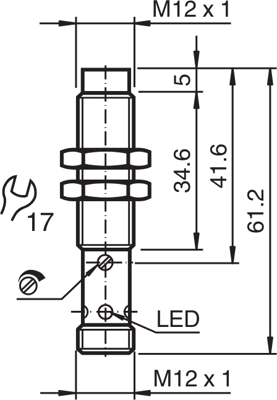

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 12 mm | |
| Connection | M12-connector | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 12 mA | |
| Length | 61.2 mm | |
| Product type | capacitive sensor | |
| Detecting distance | 8 mm | |
| Assembly | flush mounting M12, not flush | |
| Degree of protection (IP) | IP65 | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
