187487 | PEPPERL+FUCHS
Proximity switch, Surface mounting, antivalent, 20 mA, Detection range 50 mm, 187487
Order No.: 28G1023
EAN: 4099889447217
MPN:
187487
NCB50-FP-A2-P1-V1
Unit Price (€ / pc.)
308.9954 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

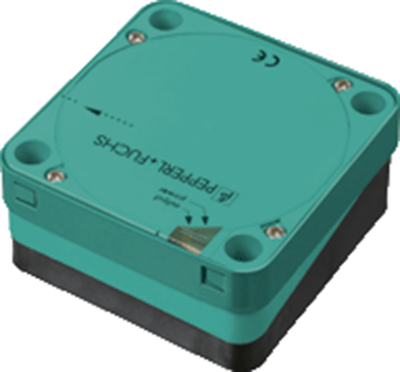

Inductive sensors, type Pepperl+Fuchs NCB50.
Sensing range: 50 mm. Output function: antivalent. Mounting mode: flush. Switching output: PNP. Rated voltage: 10 to 60 VDC. Connection: 4-pole appliance connector. Voltage drop: max. 3.0 VDC. Open circuit current: max. 20 mA. Switching frequency: 80 Hz. Housing: PBT. Degree of protection: IP 68. Ambient temperatures: –25 to +70 °C. Certifications: UL, CSA.
Type: 187487, inductive sensor
Technical specifications
| Connection | M12-connector | |
| Version | Inductive sensor | |
| Detection range | 50 mm | |
| Assembly | Surface mounting | |
| Latching switching function | antivalent | |
| switching current | 20 mA | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead, 4,4´-isopropylidenediphenol, hexahydromethylphthalic anhydride |
