102691 | PEPPERL+FUCHS
Proximity switch, built-in mounting M30, 1 Form A (N/O), 10 mA, Detection range 40 mm, 102691
Unit Price (€ / pc.)
211.6058 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

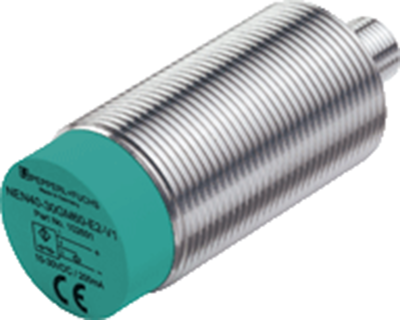

Inductive sensors, type Pepperl+Fuchs NEN40.
Increased sensing range: 40 mm. Output function: NO. Mounting mode: not flush. Switching output: PNP. Rated voltage: 10 to 30 VDC. Connection: 4-pole appliance connector. Voltage drop: max. 2.0 VDC. Open circuit current: max. 10 mA. Switching frequency: max. 100 Hz. Housing: chromed brass. Degree of protection: IP 67. Operating temperatures: –25 to 70 °C. Certifications: UL, CSA.
Type: 102691, proximity switch
Technical specifications
| Connection | M12-connector | |
| Version | Inductive sensor | |
| Detection range | 40 mm | |

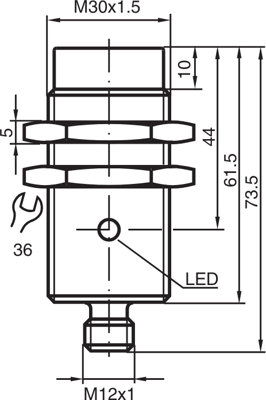

| Length | 73.5 mm | |
| Assembly | built-in mounting M30 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 10 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
