051979 | PEPPERL+FUCHS
Capacitive sensor, PNP, surface mounting, not flush, 1 Form A (N/O), 15 mA, 051979
Order No.: 28G1000
EAN: 4099889446999
MPN:
051979
CBN10-F46-E2
Unit Price (€ / pc.)
109.5633 € *
Standard delivery time from the manufacturer is: 1 Week

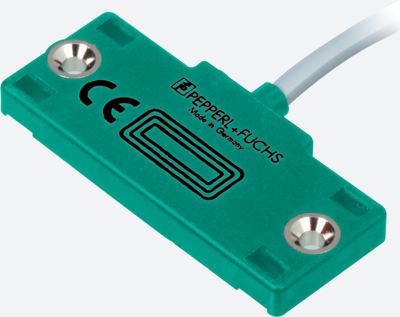

Capacitive sensor, 051979, PEPPERL+FUCHS
The capacitive sensor features a 10 mm non-flush design, operates on a 3-wire DC system, and is housed in a flat casing, complete with mounting slots for cable ties.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable, PVC 3 x 0.14 mm², 2 m | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 15 mA | |
| Length | 50 mm | |
| Product type | capacitive sensor | |
| Detecting distance | 10 mm | |
| Assembly | surface mounting, not flush | |
| Degree of protection (IP) | IP67 | |
| Version | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead, 4,4'-isopropylidenediphenol |
| RoHS conform | Yes |
| SVHC free | No |
