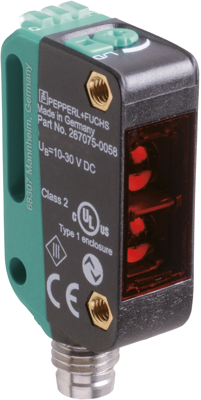

OBR7500-R100-2EP-IO-V31 | PEPPERL+FUCHS
Reflecting light barrier, 7.5 m, PNP, 10-30 VDC, M8-connector, IP67, OBR7500-R100-2EP-IO-V31
Order No.: 28G1060
EAN: 4099889430493
MPN:
OBR7500-R100-2EP-IO-V31
Unit Price (€ / pc.)
136.969 € *
Standard delivery time from the manufacturer is: On Request
Diffuse mode sensor, OBD1000-R100-2EP-IO-V31, PEPPERL+FU
The miniature optical sensor is the first device of their kind to offer an endto- end solution in a small single standard design - from thru-beam sensor through to a distance measurement device. As a result of this design, the sensor is able to perform practically all standard automation tasks. The DuraBeam laser sensor is durable and can be used in the same way as a standard sensor. The use of Multi Pixel Technology gives the standard sensor a high level of flexibility and enables them to adapt more effectively to their operating environment.
Features
- Miniature design with versatile mounting options
- High degree of protection
- IO-Link interface for service and process data
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output | PNP | |
| Activation time | 0.5 ms | |
| Voltage | 10-30 VDC | |
| Power supply | 25 mA | |
| Detecting distance | 7.5 m | |
| Connection | M8-connector | |
| Degree of protection (IP) | IP67 | |
| Switching logic | light ON/dark ON | |
| Product type | reflecting light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
