267075-100206 | PEPPERL+FUCHS
Distance sensor, 60-200 mm, NPN/PNP, Form A (N/O) / Form B (N/C), 10-30 VDC, cable, 2 m, IP67/IP69/IP69K, 267075-100206
Order No.: 28G5692
EAN: 4050143225392
MPN:
267075-100206
OMT200-R101-2EP-IO
Unit Price (€ / pc.)
337.9719 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
337.97 € *
Price list
Quantity
Price per unit*
1 pcs.
337.9719 €
2 pcs.
330.0227 €
*incl. VAT plus shipping costs
Subject to prior sale

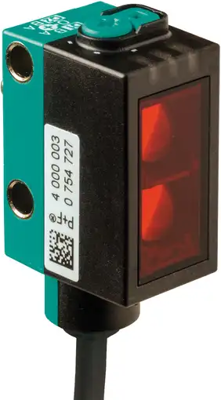

Distance sensor, OMT200-R101-2EP-IO, PEPPERL+FUCHS
Measurement to object, 200 mm detection range, red light, measured value via IO-Link, 2 x push-pull output, 2 m fixed cable.
Features
- Miniature design
- MPT Multi Pixel Technology
- IO-Link interface for service and process data
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power supply | 25 mA | |
| Connection | cable, 2 m | |
| Output | NPN/PNP, Form A (N/O) / Form B (N/C) | |
| Product type | distance sensor | |
| Activation time | 2 ms | |
| Degree of protection (IP) | IP67/IP69/IP69K | |
| Voltage | 10-30 VDC | |
| Version | modulated visible red light | |
| Detecting distance | 60-200 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 90151000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
