267075-100187 | PEPPERL+FUCHS
Distance sensor, 60-200 mm, NPN/PNP, Form A (N/O) / Form B (N/C), 10-30 VDC, M8-connector, IP67/IP69/IP69K, 267075-100187
Order No.: 28G5720
EAN: 4050143225385
MPN:
267075-100187
OMT200-R100-EP-IO-0,3M-V3
Unit Price (€ / pc.)
342.1845 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
342.18 € *
Price list
Quantity
Price per unit*
1 pcs.
342.1845 €
2 pcs.
334.1401 €
*incl. VAT plus shipping costs
Subject to prior sale

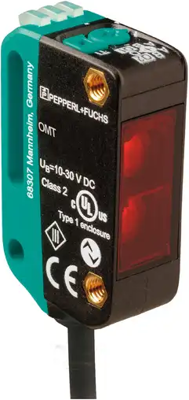

Distance sensor, OMT200-R100-EP-IO-0,3M-V3, PEPPERL+FUCHS
Measurement to object, 200 mm detection range, red light, measured value via IO-Link, push-pull output, fixed cable with M8 plug.
Features
- Miniature design with versatile mounting options
- Space-saving distance sensors in small standardized design
- Multi Pixel Technology (MPT) - exact and precise signal evaluation
- IO-Link interface for service and process data
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON | |
| Power supply | 25 mA | |
| Connection | M8-connector | |
| Output | NPN/PNP, Form A (N/O) / Form B (N/C) | |
| Product type | distance sensor | |
| Activation time | 2 ms | |
| Degree of protection (IP) | IP67/IP69/IP69K | |
| Voltage | 10-30 VDC | |
| Version | modulated visible red light | |
| Detecting distance | 60-200 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 90151000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
