098314 | PEPPERL+FUCHS
Gateway for profibus PA, (W x H x D) 100 x 107 x 115 mm, 098314
Order No.: 28G8369
EAN: 4050143058945
MPN:
098314
KFD2-BR-Ex1.3PA.93
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2,908.5623 € *
Standard delivery time from the manufacturer is: 1 Week

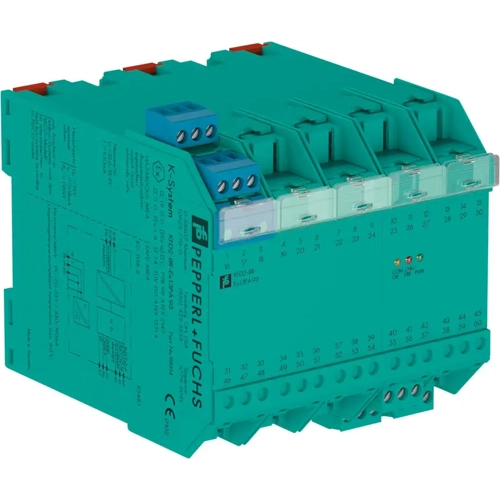

Gateway, KFD2-BR-Ex1.3PA.93, PEPPERL+FUCHS
Segment Coupler 1, intrinsically safe power supply and gateway for coupling PROFIBUS PA devices to PROFIBUS DP.
Features
- Couples PROFIBUS PA devices transparently to PROFIBUS DP
- Intrinsically safe, Ex ia (FISCO or Entity)
- Installation in Zone 2/Class I, Div. 2
- Fixed, high-availability terminator
- For all non-redundant masters
- Cyclic/acyclic data exchange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | gateway | |
| Suitable for | profibus PA | |
| Assembly | DIN rail | |
| Width | 100 mm | |
| Height | 107 mm | |
| Depth | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
