TM 110/TF/200/C34 | Peiker
Directional microphone, 200 Ω, 14 dB, 100 Hz to 10 kHz, gray, TM 110/TF/200/C34
Order No.: 46M300
EAN: 4099891542894
MPN:
TM 110/TF/200/C34
Unit Price (€ / pc.)
231.9905 € *
Available: 1 pcs.
Total Price:
231.99 € *
Price list
Quantity
Price per unit*
1 pcs.
231.9905 €
5 pcs.
223.9937 €
10 pcs.
208.0001 €
*incl. VAT plus shipping costs
Subject to prior sale

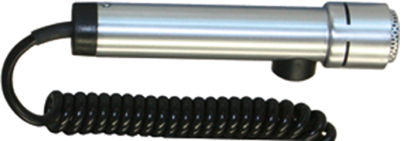

Directional microphones, type Peiker TM 110 TF.
Dynamic microphone with cardioid characteristics, particularly suitable for hand-held operation in vehicles. Low-noise device when used for close-talking, suitable for all low-impedance microphone amplifier inputs. Functional, chrome-plated brass housing with momentary action microswitch (approx. 500.000 switching actions) and a permanently mounted spiral cable (25/150 cm) with free cable end; Frequency range: 100 to 10.000 Hz. Free-field no-load sensitivity: 0.18 mV/µbar at 1.0 kHz ±3.0 dB. Impedance: 200 ohm at 1.0 kHz. Reverse attenuation: approx. 14 dB.
Type: TM 110 TF, directional microphone
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. transmission range | 100 Hz | |
| Sound pressure level | 14 db | |
| Max. transmission range | 10 kHz | |
| Colour | gray | |
| Impedance | 200 Ω | |
| Version | directional microphone |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85181000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
