KL 1 SCHWARZ | Peiker
Small speaker, 4 Ω, 82 dB, 300 to 900 Hz, black, KL 1 SCHWARZ
Order No.: 42M350
EAN: 4099891542832
MPN:
KL 1 SCHWARZ
Unit Price (€ / pc.)
76.0886 € *
Available: 11 pcs.
Total Price:
76.09 € *
Price list
Quantity
Price per unit*
1 pcs.
76.0886 €
5 pcs.
71.3286 €
10 pcs.
68.9486 €
*incl. VAT plus shipping costs
Subject to prior sale
Small speakers, type Peiker KL 1.

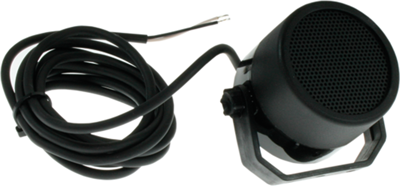

Dynamic, small version for mobile and stationary radio systems, primarily for voice transmission. The compact housing is made of impact-resistant plastic with a finely perforated metal front screen and an elastic holding bar; Bandwidth: 300 to 9000 Hz. Rated impedance: 4.0 ohm. Rated load: 5.0 W to DIN 45573. Can be used as a microphone with spherical characteristics in intercom mode (approx. value 0.14 mV/µbar sensitivity at 1000 Hz and 4.0 ohm impedance). Dimensions: 51 x 58 mm. The speaker has a permanently installed 3.0 m cable.
Type: KL 1, speaker, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. transmission range | 300 Hz | |
| Version | small speaker | |
| Max. transmission range | 900 Hz | |
| Resonance frequency | 300 Hz | |
| Sound pressure level | 82 db | |
| Impedance | 4 Ω | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85182100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
