P 1095 | PeakTech
PeakTech voltage tester, P 1095, 1095
Order No.: 22K8410
EAN: 4250569402050
MPN:
P 1095
1095
Unit Price (€ / pc.)
43.5778 € *
Standard delivery time from the manufacturer is: 2 Weeks

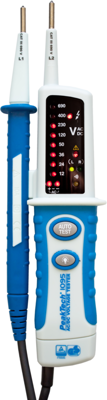

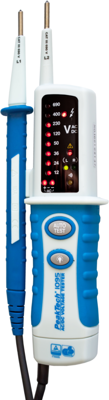

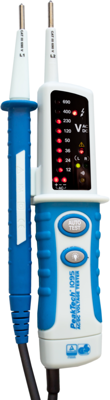

Voltage testers, type Peaktech 1095.
2-pole voltage tester with LED display for DC/AC voltages, single-pole phase test, continuity test function, polarity display, phase sequence indicator, self-test function and integrated flashlight; Voltage range: 12/24/36/50/120/230/400/690 V. Frequency range: 0 to 60 Hz. Dimensions: 255 x 52 x 40 mm. Weight: 215 g. Supplied with 2 x AAA batteries.
Type: 1095, voltage tester
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (DC) | 690 V | |
| max. voltage measuring range (AC) | 690 V | |
| Rated category | CAT III, CAT IV | |
| Display | LED | |
| Degree of protection (IP) | IP64 | |
| Version | voltage tester |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
